Seamless Boiler Tube
Category：
Keyword：
Product Description
Boiler Tube
Pipe Type: Boiler Seamless Tube, Seamless Boiler Tube, Boiler Pipe
Application: For High-pressure Fluids Transmission (boiler, heat exchanger, condenser)
Specification: OD: 0.84'' ~ 28'' (21.3 ~ 711mm)
WT: 0.091'' ~ 1.575'' (2.3 ~ 40mm)
LENGTH: Fixed Length (5.8/6/11.8/12 mtr), SRL, DRL
Standard: ASTM A179, ASTM A192, ASTM A210
Ends: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends
Surface: Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Anti-corrosive Coating
Packing: Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped
Specification of Boiler Tube
| SPECIFICATION OF BOILER TUBES | |||||||
| OD*WT | OD*WT | OD*WT | OD*WT | OD*WT | OD*WT | OD*WT | OD*WT |
| 14*3 | 38*5,5 | 89*5 | 133*18 | 34*5 | 76*6 | 133*7 | 219*7 |
| 14*3,5 | 42*3 | 89*5,5 | 159*6 | 34*6,5 | 76*7 | 133*8 | 219*8 |
| 14*4 | 42*3,5 | 89*6 | 159*6,5 | 38*3 | 76*8 | 133*10 | 219*9 |
| 16*3 | 42*4 | 89*7 | 159*7 | 38*3,5 | 76*9 | 133*12 | 219*10 |
| 18*2 | 42*5 | 89*7,5 | 159*8 | 38*4 | 76*10 | 133*13 | 219*12 |
| 18*3 | 42*6 | 89*8 | 159*9,5 | 38*4,5 | 89*4 | 133*14 | 219*13 |
| 18*4 | 42*8 | 89*9 | 159*10 | 38*5 | 89*4,5 | 133*16 | 219*14 |
| 18*5 | 45*3 | 89*10 | 159*12 | 219*16 | 273*36 | 356*28 | 426*12 |
| 19*2 | 45*4 | 89*11 | 159*14 | 219*18 | 273*40 | 356*36 | 426*13 |
| 21*4 | 45*5 | 89*12 | 159*16 | 219*20 | 273*42 | 377*9 | 426*14 |
| 22*2,5 | 45*6 | 108*4,5 | 159*18 | 219*22 | 273*45 | 377*10 | 426*17 |
| 22*3 | 45*7 | 108*5 | 159*20 | 219*24 | 298,5*36 | 377*12 | 426*20 |
| 22*4 | 48*4 | 108*6 | 159*28 | 219*25 | 325*8 | 377*14 | 426*22 |
| 22*5 | 48*4,5 | 108*7 | 168*6 | 219*26 | 325*9 | 377*15 | 426*30 |
| 25*2,5 | 48*5 | 108*8 | 168*7 | 219*28 | 325*10 | 377*16 | 426*36 |
| 25*3 | 48*6 | 108*9 | 168*8 | 219*30 | 325*11 | 377*18 | 426*40 |
| 25*4 | 48*7 | 108*10 | 168*9,5 | 219*32 | 325*12 | 377*20 | 426*50 |
| 25*5 | 48,3*12,5 | 108*12 | 168*10 | 219*35 | 325*13 | 377*22 | 457*9,5 |
| 25*5,5 | 51*3 | 108*14 | 168*11 | 219*38 | 325*14 | 377*25 | 457*14 |
| 27*3,5 | 51*3,5 | 108*15 | 168*12 | 273*7 | 325*15 | 377*32 | 457*16 |
| 27*4 | 51*4 | 108*16 | 168*14 | 273*8 | 325*16 | 377*36 | 457*19 |
| 27*5 | 51*5 | 108*20 | 168*15 | 273*9 | 325*17 | 377*40 | 457*24 |
| 27*5,5 | 51*6 | 114*5 | 168*16 | 273*9,5 | 325*18 | 377*45 | 457*65 |
| 28*2,5 | 57*4 | 114*6 | 168*18 | 273*10 | 325*20 | 377*50 | 508*13 |
| 28*3 | 57*5 | 114*7 | 168*20 | 273*11 | 325*22 | 406*9,5 | 508*16 |
| 28*3,5 | 57*5,5 | 114*8 | 168*22 | 273*12 | 325*23 | 406*11 | 508*20 |
| 28*4 | 57*6 | 114*8,5 | 168*25 | 273*13 | 325*25 | 406*13 | 508*22 |
| 30*2,5 | 60*4 | 114*9 | 168*28 | 273*15 | 325*28 | 406*17 | 558,8*14 |
| 32*2,5 | 60*4 | 114*10 | 180*10 | 273*16 | 325*30 | 406*22 | 530*13 |
| 32*3 | 60*5 | 114*11 | 194*10 | 273*18 | 325*32 | 406*32 | 530*20 |
| 32*3,5 | 60*6 | 114*12 | 194*12 | 273*20 | 325*36 | 406*36 | 570*12,5 |
| 32*4 | 60*7 | 114*13 | 194*14 | 273*22 | 325*40 | 406*40 | 610*13 |
| 32*4,5 | 60*8 | 114*14 | 194*16 | 273*25 | 325*45 | 406*55 | 610*18 |
| 32*5 | 60*9 | 114*16 | 194*18 | 273*28 | 356*9,5 | 406,4*50 | 610*78 |
| 34*3 | 60*10 | 114*18 | 194*20 | 273*30 | 356*12 | 406,4*55 | 624*14,2 |
| 34*4 | 76*4,5 | 133*5 | 194*26 | 273*32 | 356*15 | 406*60 | 824*16,5 |
| 34*4,5 | 76*5 | 133*6 | 219*6,5 | 273*35 | 356*19 | ||
Technical data
| Standard | Out Diameter | Tolerance |
| GB3087 | ≤180 | ±1.0%(min: ±0.5mm) |
| GB5310 | ≤50 | ±0.5mm |
| >50 | ±1.0% |
| Standard | Wall Thickness(mm) | Tolerance |
| GB3087 | 3-20 | +15%,12.5% |
| >20 | ±12.5% | |
| GB5310 | <3.5 | +15%,-10% |
| 3.5-20 | +15%,-10% | |
| >20 | ±10% |
Chemical Composition & Mechanical Properties
| Standard | Grade | Chemical composition(%) | Mechanical properties | ||||||
| C | Si | Mn | P | S | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | ||
| DIN17175 | St35.8 | ≤0.17 | 0.10-0.35 | 0.40-0.80 | ≤0.030 | ≤0.030 | 360-480 | ≥235 | ≥25 |
| St45.8 | ≤0.21 | 0.10-0.35 | 0.40-1.20 | ≤0.030 | ≤0.030 | 410-530 | ≥255 | ≥21 | |

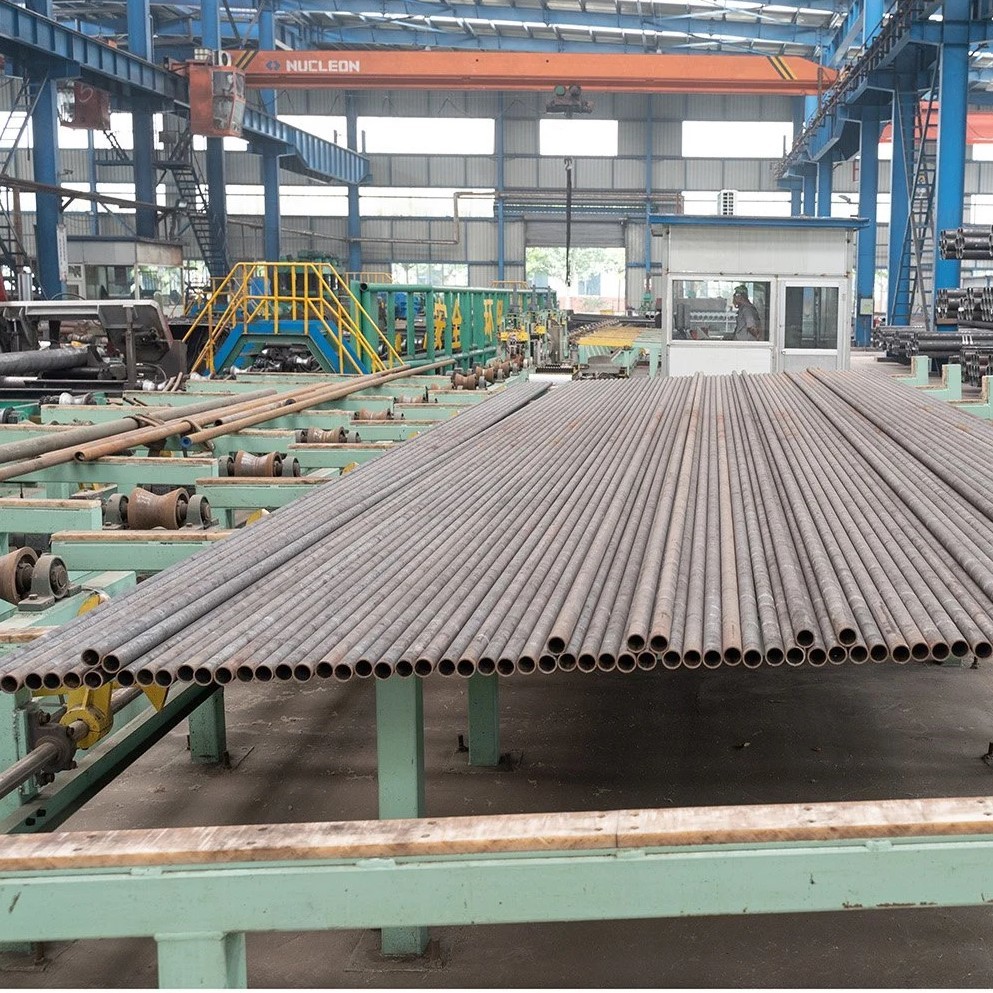

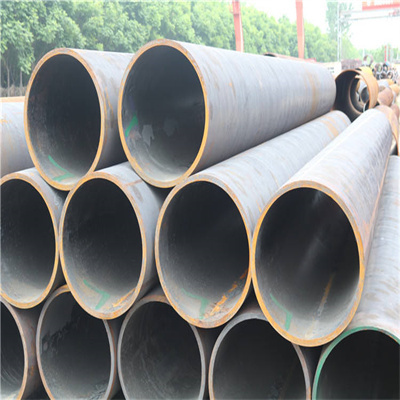

Products Display

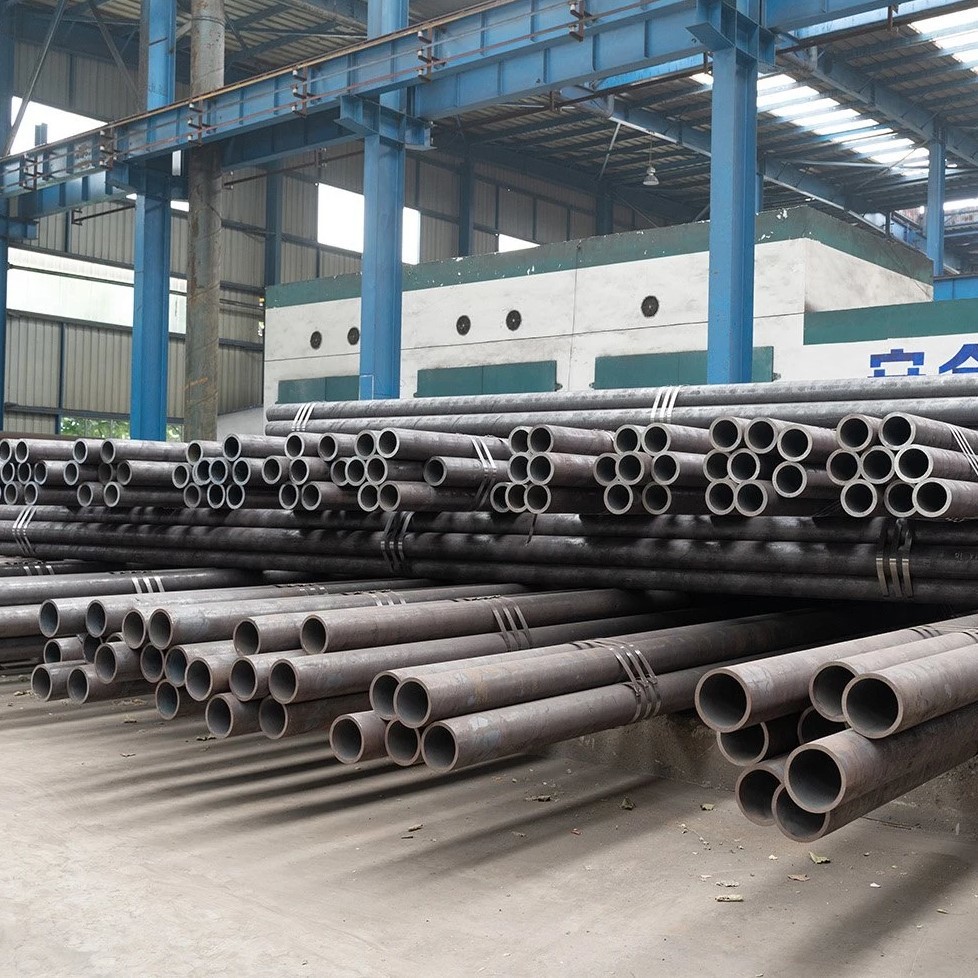

Warehouse Storage
